MR515E DC Motor Closed Loop Control (Position) Experimental Portable Case Electrical Machine Didactic Equipment
I.Product Overview
1.1 Overview

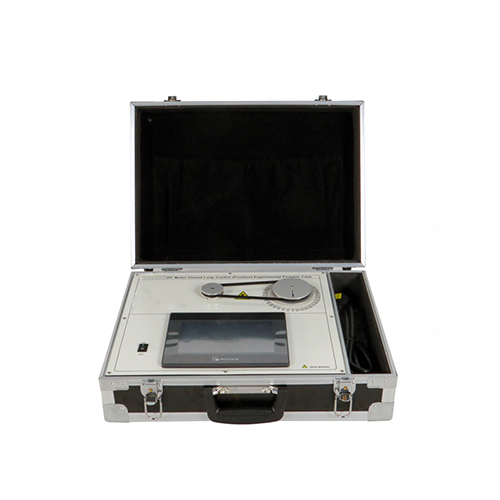

MR515E DC motor closed-loop control (position) experimental portable box is a training device for DC servo motor closed-loop speed control (P, I, D). This product adopts an aluminum alloy box structure, high-performance servo motors, sensors and other components, and the experimental box has a reasonable design and novel layout.
1.2 Features
(1) Compact design, easy to carry and move. (2) Integrated components such as DC motor, encoder, controller, driver and power supply, the experiment can be completed without additional equipment.
II.Performance Parameter
2.1 Technical Parameters
Power supply parameters: single-phase three-wire AC220V±10%; 50Hz
2.2 Dimensions and Weight
Dimensions: 460mm×330mm×135mm Weight:≈20kg
III.Components List and Detailed Introduction
3.1 Product Main Part
Number
Name
Quantity
1
Power switch
1
2
Touch screen
1
3
Rotary encoder
1
4
Stepper motor
1
IV. Experiment List Experiment 1 PID control steppermotor operation experiment
