I.Product Overview

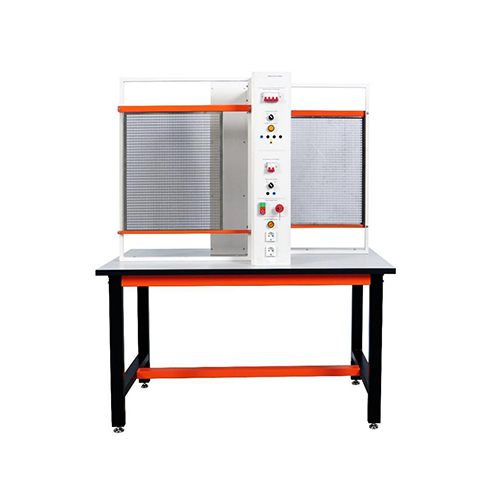

Name: Electrician's Desk Electrical Workbench Vocational Training Equipment
Brand: Jinan Minrry Technology Equipment Co.Ltd.
SKU: MR516E
Availability: InStock
Rating: 5 (1 reviews)

1.1 Overview

This electrician training bench has 2 vertical distribution consoles. Emergency cut-off of all outlets with safety key. 24V AC isolated from the power supply for 2 safety terminals. Self-protection on the primary side of the transformer and circuit breaker on the secondary side. General on/off. Indicator light indicates the on position. Double button start and stop. 230V power distribution 2 sockets + 2P + E / 1 total protection indicator light, protected by thermal magnetic circuit breaker (optional 30mA differential) three-phase power supply.

1.2 Features

1. The equipment is made of a high-strength sheet metal frame, which is beautiful and durable. It has universal wheels at the bottom for easy movement;
2. The table is equipped with a mesh plate, which can be used to place various experimental devices, which is convenient and fast.

II.Performance Parameter

2.1 Technical Parameters

Power supply parameters: three-phase five-wire AC380V
Working environment requirements: ambient temperature -10℃～+40℃, relative humidity < 85% (25℃).

2.2 Dimensions and Weight

Dimensions: 1400mm×800mm×1700mm
Weight: <150kg

III.Components List and Detailed Introduction

3.1 Main Part

Number	Name
1	Mesh plate
2	AC380V4P circuit breaker
3	AC380V knob switch
4	AC380V power indicator light
5	Three-phase power output terminal block
6	2P circuit breaker
7	Dual control switch
8	Emergency stop switch
9	AC220V European power plug
10	Experimental desktop

3.2 Accessories Part

Number	Name
1	Blue 4mm electrical cable
2	Dual color 4mm electrical cable
3	Black 4mm electrical cable
4	Industrial female connector

IV. Product Configuration List

No.	Name	QYT
1	Mesh plate	2
2	AC380V4P circuit breaker	1
3	Knob switch	2
4	Power indicator light	2
5	Three-phase power output terminal	5
6	2P circuit breaker	1
7	Dual control switch	1
8	Emergency stop switch	1
9	AC220V European power plug	2
10	Blue 4mm electrical cable	2
11	Two-color 4mm electrical cable	2
12	Black 4mm electrical cable	8
13	Industrial female connector	1

V. Experiment List (need optional components)

This section lists the optional accessory experiments that can be used with this product. The electrician's table only provides a variety of power supplies, etc. The experiments need to rely on experimental accessories, which users can purchase on their own.
Experiment 1 Single-control switch controls incandescent lamp circuit
Experiment 2 Dual-switch controls incandescent lamp circuit
Experiment 3 Dual-way incandescent lamp switch control circuit
Experiment 4 Dimming switch controls incandescent lamp circuit
Experiment 5 Incandescent lamp series-parallel circuit
Experiment 6 Reactive compensation fluorescent lamp circuit
Experiment 7 Sodium lamp circuit
Experiment 8 Connection of ammeter and voltmeter in incandescent lamp circuit
Experiment 9 Connection of frequency meter in incandescent lamp circuit
Experiment 10 Connection of power factor meter in incandescent lamp circuit
Experiment 11 Connection of single-phase electric meter in incandescent lamp circuit
Experiment 12 Connection of electric energy meter in incandescent lamp
Experiment 13 Single-door anti-theft door integrated doorbell intercom
