1. Product Introduction

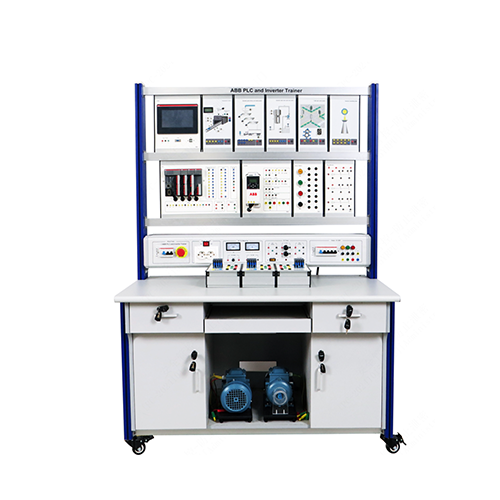

Name: ABB PLC and Inverter Trainer Electrical Lab Equipment Didactic Equipment
Brand: Jinan Minrry Technology Equipment Co.Ltd.
SKU: MR514E
Availability: InStock
Rating: 5 (1 reviews)

1.1 Product Description

This training platform includes ABB PLC, training simulation module and other control objects. Through relevant experiments, students can be familiar with the basic use of ABB PLC, programming methods, programming software, etc., and cultivate corresponding knowledge and skills. It is suitable for teaching and skill training assessment of relevant majors in higher vocational colleges, technical secondary schools and technical schools.

1.2 Product Features

(1) The training platform adopts an aluminum profile column frame structure. The measuring instrument and training power supply are built-in integrated installation. The training circuit and device are combined in a hanging box. The unit combination is flexible, easy to use and not easy to damage.
(2) The experimental circuit and device are fully equipped and can be used in combination to complete the training content of various courses.
(3) The training platform has a good safety protection system.

2. Technical specifications

2.1 Technical parameters

Power supply parameters: three-phase five-system AC380V±10% 50Hz
Working environment requirements: ambient temperature -10℃～+40℃ Relative humidity <85% (25℃)

2.2 Dimensions and weight

Dimensions: 1220mm×710mm×1820mm
Weight: 158kg

3. Product component names and function introduction

3.1 Product main part

No.	Name
1	Touch screen module
2	Temperature control module
3	Automatic feeding and loading module
4	Water tower water level control module
5	Traffic light module
6	Sky Tower Light module
7	ABB PLC module
8	ABB inverter module
9	Button module
10	Relay module
11	AC contactor module
12	Power box
13	Motor
14	Cabinet
15	Universal wheel

3.2 Product electrical part

No.	Name
1	AC 220V power circuit breaker
2	Emergency stop button
3	Output power switch
4	Socket
5	DC ammeter
6	DC voltmeter
7	DC power supply
8	AC 380V power supply

3.3 Product accessories

No.	Name
1	2mm safety electrical cable 100CM yellow
2	2mm safety electrical cable 100CM green
3	2mm safety electrical cable 100CM red
4	2mm safety electrical cable 100CM blue
5	2mm safety electrical cable 100CM black
6	4mm safety electrical cable 1m double-ended yellow
7	4mm safety electrical cable 1m double-ended green
8	4mm safety electrical cable 1m double-ended red
9	4mm safety electrical cable 1m double-ended blue
10	4mm safety electrical cable 1m double-ended double-colored
11	4mm safety electrical cable 1m double-ended black
12	Network cable 1.5m
13	Fuse 5A 5*20
14	Fuse 30mA 5*20
15	U disk
16	Communication cable
