No
|
Name
|
|

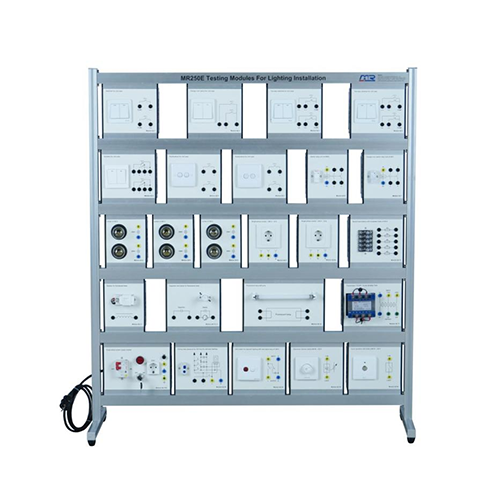

1
|
Lighting Installation Test Module Rack
|
|
2
|
AZ-1（2 civilian switches）
|
|
3
|
AZ-2（1 civil transfer switch）
|
|
4
|
AZ-3(2 civilian two-way switches)
|
|
5
|
AZ-4（2 civil commutation switches）
|
|
6
|
AZ-5（civilian button）
|
|
7
|
AZ-6(1 switch relay (230V coil))
|
|
8
|
AZ-7（2 changeover switch relays (24V coils)）
|
|
9
|
AZ-8（2 light sockets for the schematic, with lights for 230V）
|
|
10
|
AZ-9（Single phase socket –230 V –10 A）
|
|
11
|
AZ-9a（1 single-phase socket –230 V –16 A）
|
|
12
|
AZ-10（5 circuit board fuse holders with 4/6 A frangible fuses）
|
|
13
|
AZ-11（1 fluorescent lamp reactor）
|
|
14
|
AZ-12-13（1 capacitor and starter for fluorescent lamps）
|
|
15
|
AZ-14（1 fluorescent light with pins）
|
|
16
|
AZ-15（1 Transformer 115-230 / 12-24V 50-60Hz 72VA）
|
|
17
|
AZ-34（1 timer relay for staircase lighting (powered by 230 Vac)）
|
|
18
|
AZ-35（1 LED button for stairwell lighting with neon lights）
|
|
19
|
AZ-39（1 electronic dimmer switch, 500 W – 230 V）
|
|
20
|
AZ-40（1 touch-sensitive LED button, 500 W – 230 V）
|
|
21
|
AZ-1PH power module
|
|
No
|
Name
|
|
1
|
breaker
|
|
2
|
red light
|
|
3
|
AC 230V European socket
|
|
4
|
transfer switch
|
|
5
|
10A fuse
|
|
6
|
Fire neutral ground output terminal
|
|
No
|
Name
|
Qty
|
|
Element 1
|
power module
|
1
|
|
Element 2
|
AZ-1(2 civilian switches)
|
1
|
|
Element 3
|
AZ-2(1 civil transfer switch)
|
1
|
|
Element 4
|
AZ-3(2 civilian two-way switches)
|
2
|
|
Element 5
|
AZ-4(2 civil commutation switches)
|
1
|
|
Element 6
|
AZ-5(civilian button)
|
2
|
|
Element 7
|
AZ-6(1 switching relay (230 V coil))
|
1
|
|
Element 8
|
AZ-7(2 changeover switch relays (24 V coils))
|
1
|
|
Element 9
|
AZ-8(2 lamp holders for schematic diagrams with 230 V lamps）
|
3
|
|
Element 10
|
AZ-9(1 single-phase socket –230 V –10 A）
|
1
|
|
Element 11
|
AZ-9a(1 single-phase socket –230 V –16 A）
|
1
|
|
Element 12
|
AZ-10(5 circuit board fuse holders with 4/6 A frangible fuses）
|
1
|
|
Element 13
|
AZ-11(1 fluorescent lamp reactor）
|
1
|
|
Element 14
|
AZ-12-13(1 capacitor and starter for fluorescent lamps）
|
1
|
|
Element 15
|
AZ-14(1 fluorescent light with pins）
|
1
|
|
Element 16
|
AZ-15(1 Transformer 115-230 / 12-24V 50-60Hz 72VA）
|
1
|
|
Element 17
|
AZ-34(1 timer relay for stair lighting (powered by 230 Vac）
|
1
|
|
Element 18
|
AZ-35(1 LED button for stairwell lighting with neon lights 230 V glow）
|
1
|
|
Element 19
|
AZ-39(1 electronic dimmer switch, 500 W – 230 V）
|
1
|
|
Element 20
|
AZ-40(1 touch-sensitive LED button, 500 W – 230 V）
|
1
|
|
Element 21
|
frame
|
1
|
|
No
|
Name
|
Qty
|
|
1
|
1 meter red K4 test line
|
10
|
|
2
|
1 meter black K4 test lead
|
10
|
|
3
|
1 beige K4 test line
|
10
|
|
4
|
1 meter green K4 test lead
|
10
|
|
5
|
1 meter blue K4 test line
|
10
|
|
6
|
6*30 4A fuse
|
5
|
|
7
|
6*30 6A fuse
|
5
|
|
8
|
10A fuse
|
5
|
|
9
|
white woven lamp
|
6
|
|
10
|
fluorescent light
|
1
|
