Description

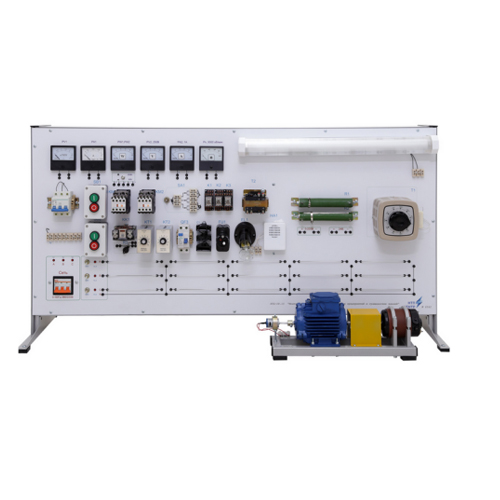

The laboratory stand is designed to be used as a teaching facility to carry out laboratory works to study electric devices used in enterprises and households, basics of their installation and search for faults.
The stand allows doing the following laboratory works
1.The test of ground loop.
2.The test of electric motor with switching units.
3.Condenser test to increase power coefficient.
4.The study of lighting network protection.
5.Mounting of electric light network in an apartment.
6.The study of luminescent lamp operation.
7.Detection and elimination of automatic electric drive defects.
8.Test of ac motor after service.
9.Test of dc motor after service.
10.Test of motor-starting devices after service.
11.Test of power transformers after service.
12.Location of faults in cable lines.
Technical characteristics of the stand
Power supply 3~380/220V, 50Hz
Power consumption, Watt less than 500
Desktop version overall dimensions:
Width, mm 1310
Height, mm 680
Depth, mm 600
Weight, kg 45
Complete set of "Installation and maintenance of electric power networks for industrial enterprises and households"
laboratory stand - 1 pc.;
manual - 1 pc.;
passport - 1 pc.;
set of jumpers - 1 set;
multimeter - 1 pc.;
the sensor of a breakaway search - 1 pc.;
earphones - 1 pc.;
bulb 60W - 220V - 3 pcs.
