1 Product overview
1-1 Overview

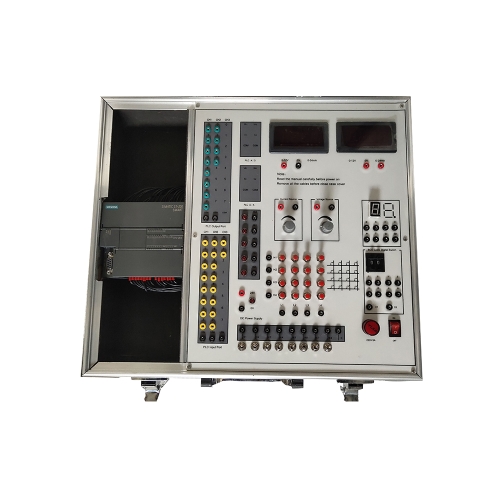

This product is used to study PLC characteristics in depth and to perform supporting experiments. The test chamber consists of a training model and a PLC module. All units are modular and open design for clear and easy operation. It is convenient for students to carry out various tests related to PLC. 1-2 Features
The product consists of a training model and a PLC module with a modular design. The test box is made of thick aluminum alloy frame and epoxy resin board, which has high compressive strength and good insulation performance. The test box uses an integrated design to reduce the size and weight of the device for easy movement. All instruments use digital display instruments, which can more easily and accurately obtain experimental data and complete experiments. 2 Technical parameters
(1) Input power: 220V±10% 50Hz
(2) Dimensions: test box 560*400*185
(3,) Weight: <25KG
(4) Working conditions: ambient temperature -10 °C ~ 50 °C Relative humidity <75% (25 °C)
4 Can complete the test
Experiment 1 Traffic Light Simulation Training
Experiment 2 Automatic mail sorting control simulation training
Experiment 3 Car transport control simulation training
Experiment 4 motor forward and reverse control simulation training
Experiment 5 Robot Control Simulation Training
Experiment 6 Temperature Control Simulation Training
