Item No.: MR201E

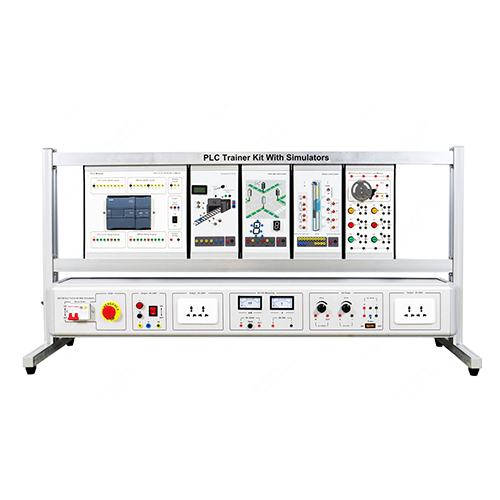

MR201E PLC Trainer Kit With Simulators Electrician Trainer Vocational Training Equipment Teaching Equipment
Request Quote
Description
MR201E PLC Trainer Kit With Simulators Electrician Trainer Vocational Training Equipment Teaching Equipment
1. Product Introduction
1.1 Product Description
This training device includes Siemens S7-1200 PLC and other control objects and training simulation modules. Through relevant experiments, students can be familiar with the basic use of Siemens PLC, programming methods and programming software, and cultivate corresponding knowledge and skills. It is suitable for teaching and skill training assessment of related majors in higher vocational colleges, junior colleges, secondary vocational schools and technical schools.
1.2 Product Features
(1) The training table adopts an aluminum profile column frame structure. The measuring instrument and training power supply are installed in an integrated manner. The training circuit and components are combined in a hanging box. The unit is flexible, easy to use and not easy to damage.
(2) The experimental circuit and device are fully equipped and can be used in combination to complete the training content of various courses.
(3) The training table has a good safety protection system. Allowing students to conduct experiments independently is conducive to cultivating students' ability to analyze and solve problems.
2. Technical specifications
2.1 Technical parameters
Power supply parameters: single-phase three-wire 230V±10% 50Hz
2.2 Dimensions and weight
Dimensions: 1330mm×480mm×830mm
Weight: 44kg
3. Product component names and function introduction
3.1 Product main part
No.
Name
1
Siemens S7-1200 PLC and I/O modules
2
Temperature control module
3
Elevator control module
4
Traffic light experiment module
5
Electromechanical load module
3.2 Product electrical part
No.
Name
1
AC220V power leakage circuit breaker
2
Emergency stop switch
3
AC220V power output unit
4
Six-hole socket
5
DC ammeter, DC voltmeter
6
DC4-20mA output current analog signal
7
DC0-10V output voltage analog signal
8
DC24V power supply
9
Six-hole socket
3.3 Product accessories
No.
Name
1
2mm safety electrical cable 100CM red
2
2mm safety electrical cable 100CM black
3
2mm safety electrical cable 100CM yellow
4
2mm safety electrical cable 100CM blue
5
2mm safety electrical cable 100CM green
6
4mm safety electrical cable 1m double-ended yellow
7
4mm safety electrical cable 1m double-ended blue
8
Network cable 1.5m
9
Fuse 5A 5*20
10
Fuse 30mA 5*20
11
4mm safety electrical cable 1m double-ended double-colored
4. Product Configuration List
No.
Name
Qty
1
AC220V power leakage circuit breaker
1
2
Emergency stop switch
1
3
AC220V power output unit
1
4
Six-hole socket
1
5
DC ammeter, DC voltmeter
1
6
DC4-20mA output current analog signal
1
7
DC0-10V output voltage analog signal
1
8
DC24V power supply
1
9
Six-hole socket
1
10
2mm safety electrical cable 100CM red
10
11
2mm safety electrical cable 100CM black
10
12
2mm safety electrical cable 100CM yellow
10
13
2mm safety electrical cable 100CM blue
5
14
2mm safety electrical cable 100CM green
10
15
4mm safety electrical cable 1 meter double-ended yellow
1
16
4mm safety electrical cable 1 meter double-ended blue
1
17
Network cable 1.5 meters
1
18
Fuse 5A 5*20
5
19
Fuse 30mA 5*20
5
20
4mm safety electrical cable 1 meter double-ended double-colored
1
5. Product teaching experiment list (see the experiment guide for details)
(1) Traffic light simulation training
(2) Elevator control simulation training
(3) Temperature control simulation training
(4) Motor control simulation training
