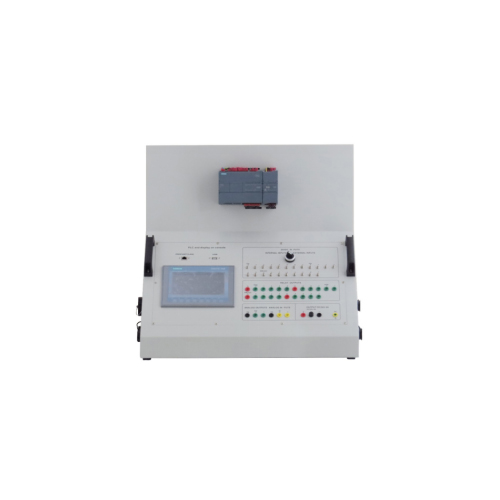

MR490E PLC And Display On Console Didactic Equipment Electrical Lab Equipment
1. Equipment Introduction
This training device includes Siemens S7-1200 PLC and training simulation modules and other control objects. Through relevant experiments, you can be familiar with the basic use, programming methods and programming software of Siemens PLC. To cultivate students' corresponding knowledge and skills, it is suitable for the teaching and skill training assessment of related majors in higher vocational schools, vocational schools, secondary vocational schools and technical schools.
2. Technical Parameters
(1) Input power supply: AC220V±10% (2) Weight: less than 50kg (3) Working conditions: ambient temperature 10 ℃ ~ 30 ℃ relative humidity <75% (25 ℃) (4) Size: about 540mm*380mm*620mm
3. List Of Components
1.PLC 2.Touch Screen 3.PLC internal input point 4.PLC relay output 5.PLC analog inputs and outputs 6.24V power output 7.Digital input and relay output 8.Accessories
5. List Of Experiments
Experiment 1 Internal input digital control PLC Experiment 2 External input digital control PLC Experiment 3 Controlling the internal output of PLC digital quantity Experiment 4 Controlling PLC digital external output Experiment 5 Internal Analog Input Experiment 6 Internal Analog Output Experiment 7 External analog input Experiment 8 External analog output
