I.Product Overview
1.1 Overview

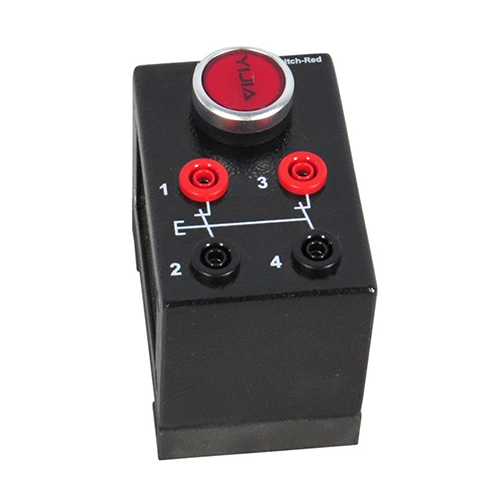

The Push Button Switch-Red is a two-circuit switching device. It has double-break contacts connected to a plunger, which, when pressed, breaks the normally closed circuit and forms a normally open circuit. When the button is released, a spring returns the contacts to their normal position.
II.Performance Parameter
2.1 Dimensions and Weight
Dimensions: 90mmx60mmx95mm
Weight: ＜1kg
III.Components List and Detailed Introduction
3.1 Main Part
Number Name
1 Self-reset button
2 Normally closed contact
IV. Experiment List
Experiment 1 Control loop experiment
