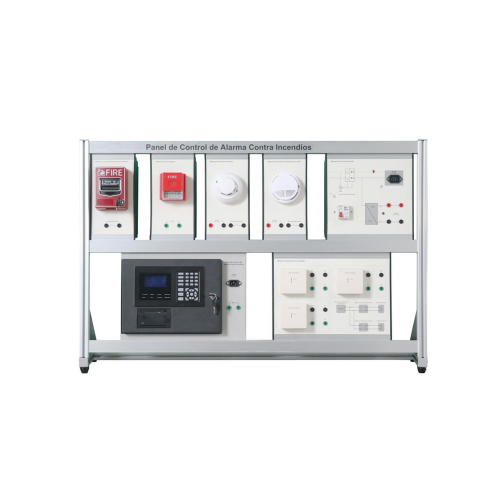

MR1003B Fire System Alarm Control Panel Vocational Training Equipment Building Automation Training Equipment
1. Equipment Introduction
1.1 Overview
This system can simulate the fire alarm system process, so that students can have a preliminary and intuitive understanding of the fire alarm system, familiarize themselves with the composition, connection, and operation principle of the fire alarm system, and cultivate students' corresponding knowledge and skills.
1.2 Features
(1) The training platform adopts an aluminum profile frame structure, the unit is flexible and easy to use, and not easy to damage.
(2) The experimental circuit and device configuration are complete and can be used in combination to complete the training content of various subjects.
(3) The training platform has a good safety guarantee system.
2. Technical Parameters
Input power: single-phase AC 220V (-15%~+10%), 50Hz
Dimensions:1190mm*630mm*960mm
Weight:71KG
Working conditions: Temperature: -10℃~+50℃; Relative humidity: ≤95%, no condensation
4. Experiment list
Experiment 1 Fire system alarm control panel address coding
Experiment 2 Alarm parameter printing operation
Experiment 3 Wired gas detection alarm module test experiment
Experiment 4 Smoke sensor module test experiment
Experiment 5 Manual emergency starter module test experiment
