Electronic Workbench Educational Equipment Electrical Installation Lab
  • Electronic Workbench Educational Equipment Electrical Installation Lab

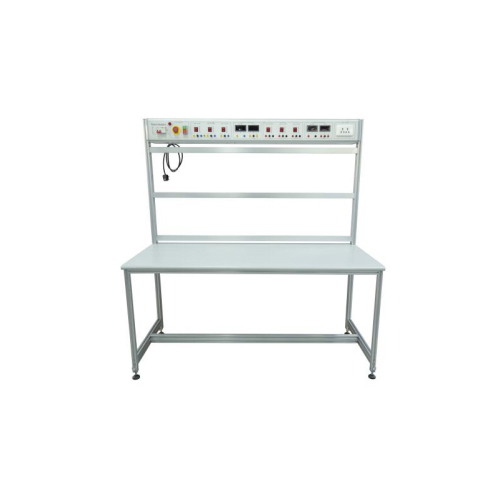

Electronic Workbench Educational Equipment Electrical Installation Lab

Item No.: MR484E
MR484E Electronic Workbench Educational Equipment Electrical Installation Lab
Request Quote
MR484E Electronic Workbench Educational Equipment Electrical Installation Lab


I.Product Overview

1.1 Overview

This training device is designed according to the current electrician training requirements and provides a variety of DC power supplies and AC power supplies. It cultivates students' corresponding knowledge and skills and is suitable for teaching and skills training assessment in related majors in higher vocational colleges, junior colleges, secondary vocational schools and technical schools.

1.2 Features

This training device is designed according to the current electrician training requirements and provides a variety of DC power supplies and AC power supplies. It cultivates students' corresponding knowledge and skills and is suitable for teaching and skills training assessment in related majors in higher vocational colleges, junior colleges, secondary vocational schools and technical schools.

II.Performance Parameter

Input power: AC220V±10% 50Hz
Weight: <150kg
Working conditions: Ambient temperature -10℃+40℃ Relative humidity <85% (25℃)
Size: 1600mm*700mm*1670mm
Overall machine capacity: <3.0KVA

III.Experiment List

Experiment 1 AC220V power module output experiment
Experiment 2 AC24V/2A power module output experiment
Experiment 3 AC12V/1A power module output experiment
Experiment 4 DC24V/3A power module output experiment
Experiment 5 DC12V/2A power module output experiment
Experiment 6 DC5V/2A power module output experiment
