MR486E Electricity Kit For Learning Basic Electricity (Electromagnetism, Electrical Circuits, Electric Motor) Didactic Equipment Electrical Workbench
1. Equipment introduction
1.1 Overview
This training device includes various types of motors and industrial control components. Through relevant experiments, students can become familiar with the operating characteristics of three-phase AC motors and DC motors and the use of various industrial control components, master their control principles and methods, and train students The corresponding knowledge and skills are suitable for teaching and skills training assessment in related majors in higher vocational colleges, colleges, secondary vocational schools and technical schools.
1.2 Features

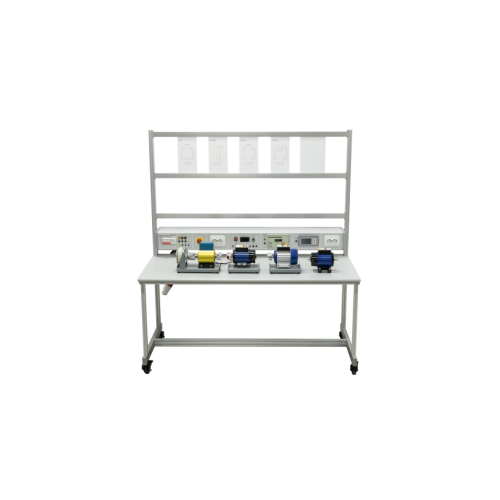

(1) The training platform adopts an aluminum profile column frame structure, which is simple and elegant as a whole. It is equipped with universal wheels at the bottom, which can be flexibly moved, and the height can be adjusted individually according to the ground conditions. Measuring instruments and training power supplies are installed in built-in integrated hanging boxes, which are easy to use and not easily damaged. (2) Equipped with multiple types of motors, fully configured and can be used in combination. (3) The combination of software and hardware can complete training content in a variety of subjects. (4) The training platform has a good safety protection system.
Experiment 1 Three-phase squirrel cage asynchronous motor power supply rotation experiment Experiment 2 DC compound excitation motor power supply rotation experiment Experiment 3 Three-phase squirrel cage asynchronous motor drives DC compound excitation motor to generate electricity Experiment 4 Magnetic Powder Brake Experiment Experiment 5 Torque Transmitter Experiment
