I. Product Overview
1.1 Overview

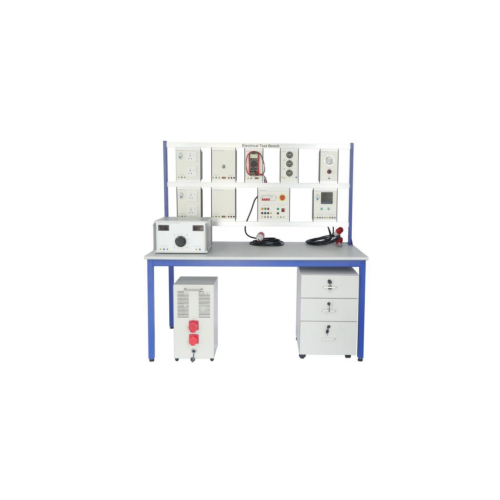

Electrical test benches are practical training devices designed specifically for circuit and equipment testing. To ensure safety, make sure the power supply is properly connected, there are no exposed wires, the equipment is well grounded before use, and avoid operating electrical equipment with wet hands. When connecting the lines, the experiment instructions should be followed, and the experiment can only be conducted after being checked by professionals.
The main components include AC 110V/220V socket modules, adjustable DC power modules, single-phase/three-phase auto-voltage regulators, etc., as well as accessories such as multimeters, test leads and fuses. These build the component list of the test bench, each of which has a detailed functional description.
1.2 Features
The structure of this training platform uses lightweight aluminum profile columns, giving it a simple and modern appearance. The measuring instruments and training power supply are cleverly designed to be built-in and integrated, and adopt a box-type installation method, which is not only convenient to use, but also effectively prevents damage.
II. Performance Parameters
Input power: three-phase five-wire system AC 380V ±10%
Weight:<188kg
Size: 1650mm*850mm*1620mm
