Description

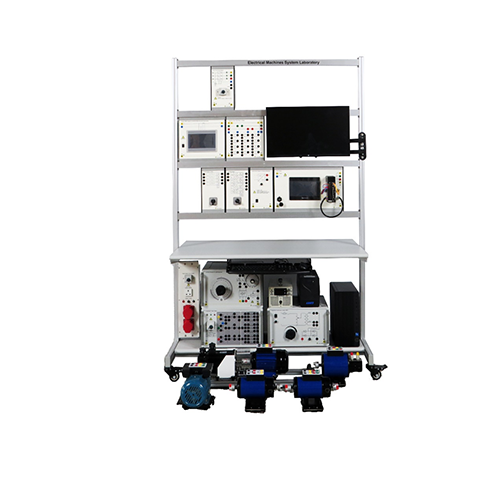

MR518E Electrical Machines System Laboratory Electrical Engineering Lab Equipment Didactic Equipment
1. Product Introduction
1.1 Product Description
The Motor System Laboratory is a teaching device used to study the functions of various motors. The system can teach the use principles of various motors and the load capacity of various motors and measure the specific values of the load capacity through the braking system. The Motor System Laboratory consists of three parts. The first part is the various power supply parts, which include a variety of power supplies. The second part is the measurement and braking unit, which is responsible for detecting data and braking. The third part is the various motor parts, mainly single-phase induction motors, three-phase asynchronous motors, three-phase multi-function machines, multi-function DC machines, AC and DC universal motors and other motors. In this system, a servo motor is responsible for performing braking. The advantage of using this brake is that the braking data can be accurately obtained.
1.2 Product Features
1. The product has a beautiful appearance design, is made of light and durable materials, and is sturdy and durable.
2. The product can have a variety of power supplies, including three-phase AC, single-phase AC and DC.
3. The product modules are rich and can be used for a variety of teaching.
4. The product supports digitalization and can perform digital acquisition and control.
2. Technical Specifications
2.1 Technical Parameters
Power supply parameters: three-phase AC380V;
Multifunctional DC motor parameters: 2000 rpm, 220V, 0.2kW; Functions: parallel, series and compound winding motor/generator;
General motor (DC and AC) parameters: 3000rpm, 220V, 0.25kW;
Single-phase induction motor parameters with working capacitor and auxiliary capacitor: 2870 rpm, 0.37kW
Three-phase asynchronous motor parameters, 1380 rpm, 690/400V, 0.37kW
Three-phase multifunctional motor parameters, 1420/1500 rpm, 400/230 V, 0.27 kW; Functions of three-phase asynchronous motor with slip ring; Functions of three-phase synchronous motor;
Regulated high voltage DC power supply parameters: 1000W, 500V;
Three-phase capacitive load parameters: 3x 1µF / 2µF / 4µF / 8µF;
Transformer trainer parameters: 300 VA, with motor protection switch; Input voltage: 3x 230/400V, 50/60Hz, output 6x 115V;
Working environment conditions: ambient temperature -10℃～+40℃, relative humidity < 85% (25℃).
2.2 Dimensions and weight
Dimensions: 1300x750x2000mm
Weight: 150kg

3. Product component names and function introduction
3.1 Product main part

No	Name
1	Aluminum alloy profile frame
2	Motor three-phase power switch
3	Educational RMS voltage/current/power measurement instrument system
4	Three-phase capacitive load, 14 levels, 3x 1µF / 2µF / 4µF / 8µF
5	Four-pole disconnect switch
6	Star-delta switch
7	Power supply for motor exciter, 110W
8	Servomotor brake system (servomotor included)
9	Mains power supply with adjustable three-phase motor circuit breaker
10	300W machine load and resistor bank
11	Transformer trainer, 300 VA, with motor protection switch
12	Servomotor
13	Single-phase induction motor with operating and auxiliary capacitors, 2870 rpm, 0.37 kW
14	Monitor
15	Keyboard and mouse
16	UPS power supply
17	Regulated high-voltage DC power supply
18	Regulating transformer, exciter
19	0-200 V
20	PC host
21	Three-phase asynchronous motor, 1380 rpm, 690/400V, 0.37kW
22	Three-phase multifunction machine, 1420/1500 rpm, 400/230 V, 0.27 kW
23	Multifunction DC machine 2000 rpm, 220V, 0.2kW

3.2 Product accessories

No	Name
1	Industrial plug power cable
2	Green 4mm safety connection cable
3	Red 4mm safety connection cable
4	Yellow 4mm safety connection cable
5	Black 4mm safety connection cable
6	Blue 4mm safety connection cable
7	Dual color 4mm safety connection cable
8	PC power line
9	HDMI monitor cable
10	monitor power cable
11	socket
12	power extension cable
13	USB to 485 cable
14	U-shaped wiring plug
15	digital multimeter
16	software USB flash drive
17	USB cable
18	spare terminal
19	digital multimeter spare battery
20	spare three-plug
21	fuse
