I.Product Overview

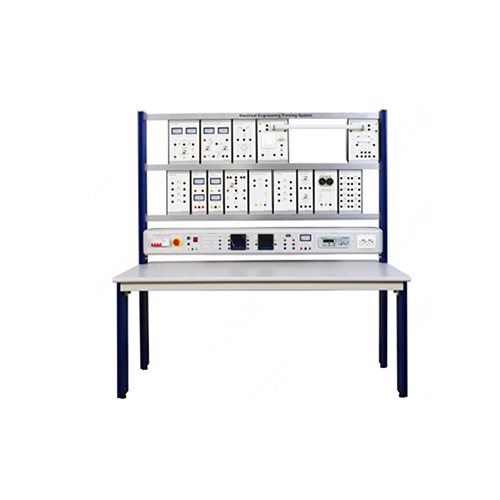

Name: Electrical Engineering Training System Electrical Lab Equipment Didactic Equipment
Brand: Jinan Minrry Technology Equipment Co.Ltd.
SKU: MR512E
Availability: InStock
Rating: 5 (1 reviews)

1.1 Overview

With good expansion capability, this trainer can also be expanded to other training contents. Schematic diagrams and symbols are drawn on the front of the hanging box. The experimental circuit is designed in unit circuit mode. Each unit circuit is based on the basic circuit. Students can practice various training contents on this device.

1.2 Features

1. This product adopts advanced design, and the experimental panel can be replaced freely, and students can replace it according to different training requirements.
2. The experimental instrument has the characteristics of high precision. The power and instruments used in this product are equipped with a reliable personal safety protection system.

II.Performance Parameter

2.1 Technical Parameters

Power supply parameters: three-phase AC 220V/±10%

2.2 Dimensions and Weight

Dimensions: 1650mm x 1000mm x 950mm
Weight: <140kg

III.Components List and Detailed Introduction

3.1 Main Part

Number	Name
1	Module part
2	Power box part
3	Desktop

3.2 Electrical Parts

Number	Name
1	4P circuit breaker
2	Emergency stop
3	Output control part
4	Transformer
5	Three-phase multi-function meter
6	Single-phase multi-function meter
7	DC output (can be connected in series)
8	DC ammeter
9	Signal generator
10	Socket

3.3 Product module parts

Number	Name
1	Ohm's law module
2	Resistor shunt/voltage divider module
3	Resistor star-delta module
4	Starter module
5	Lamp tube
6	Ballast module
7	Inductor module
8	DC voltage/current module
9	AC voltage/current module
10	Kirchhoff's law module
11	Parallel RLC module
12	Capacitor module
13	Potentiometer module
14	Right-hand rule module
15	Resistor module

3.4 Accessories Part

Number	Name
1	Insulation resistance meter megohmmeter 1000V
2	Digital multimeter UA9205
3	4mm electrical cable 1m double-ended yellow
4	4mm electrical cable 1m double-ended green
5	4mm electrical cable 1m double-ended red
6	4mm electrical cable 1m double-ended blue
7	4mm electrical cable 1m double-ended black
8	Fuse 5A 5*20
9	Fuse 1A 5*20
10	Fuse 0.1A 5*20
11	Fuse 0.3A 5*20

IV. Product Configuration List

No.	Name	QYT
1	Ohm's law module	1
2	Resistor shunt/voltage divider module	1
3	Resistor star-delta module	1
4	Starter module	1
5	Lamp tube	1
6	Ballast module	1
7	Inductor module	1
8	DC voltage/current module	1
9	AC voltage/current module	1
10	Kirchhoff's law module	1
11	Parallel RLC module	1
12	Capacitor module	1
13	Potentiometer module	1
14	Right-hand rule module	1
15	Resistor module	1
16	Insulation resistance meter megohmmeter 1000V	1
17	Digital multimeter UA9205	1
18	4mm electrical cable 1 meter double-ended yellow	5
19	4mm electrical cable 1 meter double-ended green	5
20	4mm electrical cable 1 meter double-ended red	8
21	4mm electrical cable 1 meter double-ended blue	5
22	4mm electrical cable 1 meter double-ended black	8
23	Fuse 5A 5*20	5
24	Fuse 1A 5*20	5
25	Fuse 0.1A 5*20	5
26	Fuse 0.3A 5*20	5

V. Experiment List
Experiment 1 Ohm's law verification experiment
Experiment 2 Shunt/voltage division test experiment
Experiment 3 Kirchhoff's law verification experiment
Experiment 4 Right-hand rule law verification experiment
Experiment 5 Lighting operation experiment
Experiment 6 Resistance star-delta experiment
