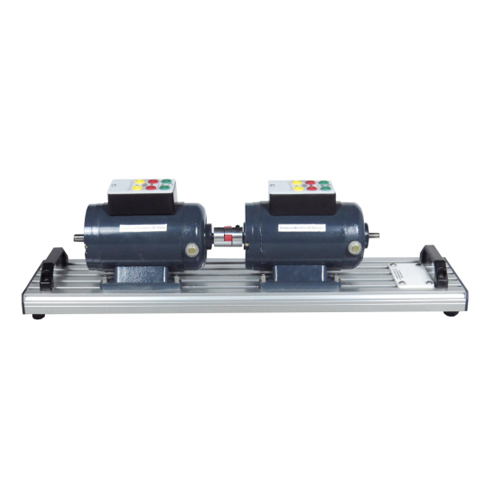

MR478E Compound Excitation DC Generator Set Didactic Equipment Electrical Installation Lab
1 Introduction
Compound excitation DC motor is a DC motor with shunt winding and series excitation winding installed on the main magnetic pole. The excitation winding of the compound excitation motor is divided into two parts, one part is connected in series with the armature winding, and the other part is connected in parallel with the armature winding. Compound DC motors can be used as motors and generators.
2Equipment parameters
Compound excitation DC motor rated voltage: 220V Rated speed: 1500 rpm. Compound excitation DC generator generating voltage: 220V
3 Equipment composition
DC compound excitation motor
2. Motor coupling 3. DC compound excitation generator Accessories 4mm safety electrical cable
4 Experiments
Experiment 1. DC compound excitation motor Experiment 2, DC compound excitation generator set
