1. Product overview
1.1 Overview
This training equipment can pass relevant experiments, familiarize yourself with the operating characteristics of DC motors and synchronous motors, master their control principles and control methods, and cultivate students' corresponding knowledge and skills. It is suitable for higher vocational, vocational, secondary vocational schools and technical schools. Professional teaching and skills training assessment.
1.2 Features

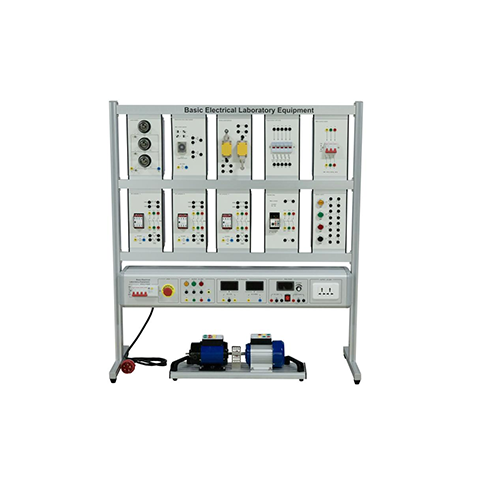

(1) The training platform adopts an aluminum profile column frame structure with a cushion at the bottom. The measuring instrument and the training power supply are built-in integrated installation, which is easy to use and not easy to be damaged.
(2) The training platform has a good safety protection system.
2. Performance parameters
(1) Input power supply: three-phase five-wire system 380V±10% 60Hz
(2) Dimensions: about 1100mm×400mm×1200mm
(3) Overall capacity: <1.5KVA
(4) Weight: <150kg
(5) Working conditions: ambient temperature -10℃～+40℃, relative humidity <85% (25℃)
3. Product composition
3.1 Overall structure
The power control panel adopts an aluminum alloy profile panel, a closed box structure, and is connected to the lower shelf as a whole.
3.2 Power box configuration
(1) Three-phase five-wire power input, controlled by leakage circuit breaker, equipped with emergency stop control button, press the emergency stop button circuit breaker to cut off the power supply in an emergency.
(2) Equipped with power indicator lights, power output sockets and safety power output terminals.
(3) Equipped with special protection switch for AC motor, built-in AC power supply, with short-circuit protection function.
3.3 Introduction of hanging box
(1) Hanging box module
