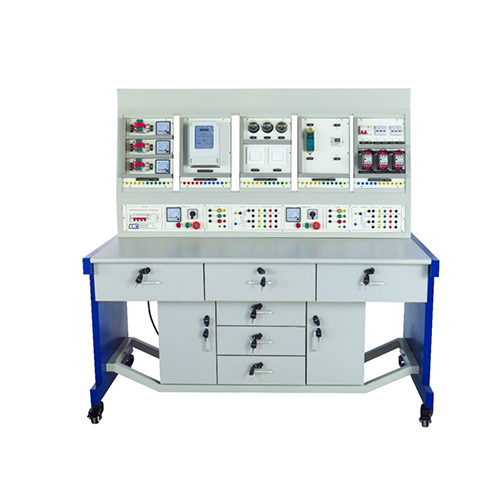

MR017E Advanced Maintenance Electrician Training Maintenance Education Kit Electrical Workbench Educational Equipment
1 Equipment Introduction
1.1 Overview
This training device includes various types of basic electrical control components and measurements. Through relevant experiments, you can become familiar with the connection methods of lighting circuits, motor control circuits, and measurement circuits, master their control principles and control methods, and cultivate students' corresponding knowledge and Skills, suitable for the teaching and skill training assessment of related majors in higher vocational schools, colleges, secondary vocational schools and technical schools.
1.2 Features
(1) The electrical control circuit components are installed on the mounting board as a hanging board, which is convenient to operate and replace, and is convenient for expanding functions or developing new training; the selection of operation content is typical, practical and scientific. the
(2) The console can be put into use with only three-phase four-wire AC power supply;
(3) In the relay contact control circuit training, all components are led to the terminals through wires, and students only need to wire on the terminals when wiring, which is beneficial to protect the components; Process wiring training;
(4) Each power supply output has functions such as monitoring and short-circuit protection. When there is a short circuit caused by misoperation or wrong wiring during training, the device can automatically protect to avoid burning the fuse and damaging electrical appliances, and ensure the smooth progress of the training;
(5) The training platform has a good safety protection system. The connection between the training circuit and the power supply of the device is through a safety socket and a high-reliability sheath structure pistol plug-in wiring, which is safe and fast.
2 Technical Parameters
(1) Input power: three-phase five-wire system 220V±10%
(2) Dimensions: about 1600mm×800mm×1500mm
(3) Machine capacity: <1.5KVA
(4) Weight: <150kg
(5) Working conditions: ambient temperature -10℃～+40℃, relative humidity <85% (25℃)
3 Components List And Detailed Introduction
Main Part:

No	Component
1	hanging boxes
2	power box
3	Table
4	Cabinet

Power box :
The left and right components of the power box are the same.
